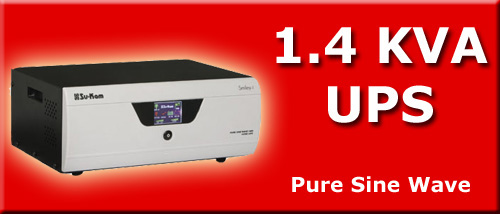

1.4KVA UPS
1.4 KVA UPS - Features and Benefits

  • External batteries available for up to 8 hours of operation during power loss.
  • Provides pure sine wave output (100% pure)- purer than power from grid
  • Instant switchover: for the computer to run uninterrupted during power cuts, without rebooting.
  • Provides extra long back-up for computers
  • Space Saver - ideal for modern day households.
  • User friendly display of alerts
  • Choice of various aesthetically designed models.
  • Option of castor wheel mounted trolley for easy movement.
  • Option of LED or LCD display
  • Saves 40% electricity bill as compared to square wave inverter
  • Incorporates smart overload sensing and short-circuit protection with auto reset.
  • Ideal for computers in addition to television, room cooler, tube lights and fans.
SU-KAM 1.4 KVA Pure Sine Wave Home UPS
SPECIFICATIONS
Technology Micro-controller based using MOSEFT
Ratings 1400VA
Model Name Smiley
Input Parameters
Input Supply 1 phase 3 wire
Input Voltage
(toggle switch towards inverter mode)		 105V - 290V +/- 5V
Input Voltage
(toggle switch towards UPS mode)		 185V - 265V +/- 5V
Frequency Range 47 - 53Hz
Output Parameters
Output Voltage Regulation 175 - 240V
Output Frequency Regulation 50 +/-.1Hz
Output Wave Form Pure Sine Wave
Crest Factor 3:01
Battery Parameters
Battery Type 135 - 200AH
Battery Voltage (nominal) 24V
Battery Charging Current
(NC mode)		 9.0 +/- 2.0A
Battery Charging Current
(HC mode)		 13.0 +/- 1.0A
Environmental Parameters
Operating Temperature 0-40 degrees cel
Storage Temperature 0-50 degrees cel
Humidity 0-90% non-condensing
Protection Class IP21
Other Parameters
Indications & Alarms LED Display (Mains ON, Inverter ON, Mains Fuse Blown, Battery Low, Overload, Short Circuit)
Dimensions 392 X 310 X 170
Weight (kg) 16.9
